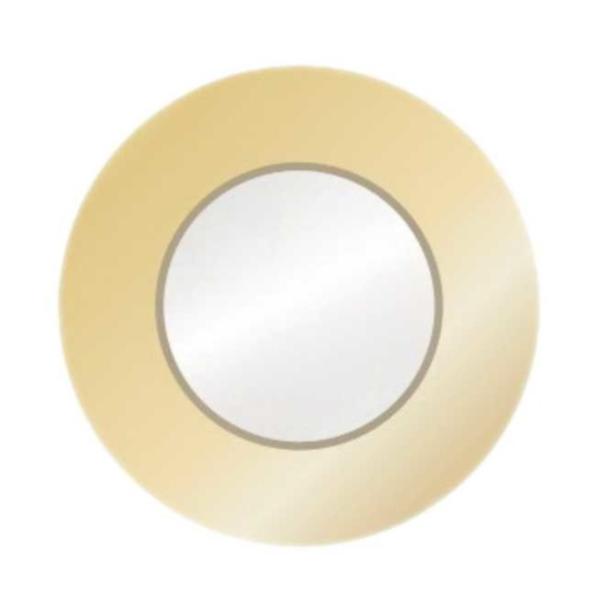

PP0088 14KHZ Piezoelectric Ceramic Elements Ф10.6mm Piezo Disk Element

Name: PP0088 14KHZ Piezoelectric Ceramic Elements Ф106mm Piezo Disk Element
Brand: AUDIOWELL
Price: 1 USD

Brand Name : AUDIOWELL

Model Number : PP0088

Place of Origin : China

MOQ : 20000

Payment Terms : T/T

Delivery Time : 15 works days

Frequency : 14KHZ

Resonant impedance : 1000 ΩMAX.

Size : φ10.6x0.22mm

Resonant frequency : 14.0±2.0KHz

Contact Now

Piezoelectric Ceramic Elements Ф10.6mm Piezo Disk Piezoelectric Effect

Electric field applied between electrodes of a piezoelectric component can result in a mechanical distortion of the ceramic disk itself, due to the so called “piezoelectric effect”, when the ceramic disk expands radially, the whole component bends towards the same direction. Thus when an Ac signal was applied on the piezoelectric ceramic disk, it can trigger vibration of the component and then sound waves are generated.

Specifications

Model	PP0088
Resonant frequency	14.0±2.0KHz
Resonant impedance	1000Ω MAX.
Main electrostatic capacity	9000±25% pF
Operating temperature	-20℃ ~ +85℃
Max. input voltage	30Vp-p
Size	φ10.6x0.22mm

Applications

- Smoke detectors
- Industrial equipment alerts
